Revolutionizing Visible Light Photopolymerization: The Potential of Naphthoquinone Derivatives
1. Introduction
Visible light photopolymerization is a cutting-edge technology that has found applications across various sectors, including coatings, adhesives, 3D printing, and biomedical devices. This process harnesses visible light to initiate polymerization, a chemical reaction in which monomers link together to form polymer chains. The demand for more sustainable and efficient photopolymerization processes has led to significant advancements, particularly with the integration of energy-efficient light sources such as light-emitting diodes (LEDs). These developments not only enhance the performance of photopolymerization but also encourage the exploration of novel photoinitiating systems capable of achieving faster polymerization rates and higher monomer conversion efficiencies.
2. The Role of Energy-Efficient Light Sources
The shift from traditional light sources, such as mercury lamps, to energy-efficient alternatives like LEDs, marks a pivotal moment in the evolution of photopolymerization technology. LEDs offer numerous advantages, including reduced energy consumption, longer operational lifespans, and the ability to emit light at specific wavelengths optimized for photoinitiators. This precise wavelength selection is crucial as it enables more controlled and efficient polymerization processes, minimizing the need for excess energy and reducing the environmental impact.
Moreover, LEDs produce significantly less heat compared to traditional light sources, a feature that is particularly beneficial in temperature-sensitive applications. Excessive heat can lead to unwanted side reactions or degradation of heat-sensitive materials, which can compromise the quality of the final product. By reducing the thermal load, LEDs not only conserve energy but also enhance the safety and reliability of photopolymerization processes, making them more suitable for delicate substrates and complex materials.
Another notable advantage of LEDs is their tunability. Modern LED systems can be engineered to emit light at precise wavelengths, allowing for the fine-tuning of the photopolymerization process. This capability is particularly valuable in applications requiring high precision and control, such as in the manufacture of microelectronics or biomedical devices.
3. Advances in Photoinitiating Systems
As light sources have evolved, so too have the photoinitiating systems that work alongside them. The ongoing quest for more effective photoinitiators has led researchers to explore new chemical families, aiming to discover compounds that can outperform existing technologies. The primary goals are to develop photoinitiators that enable faster polymerization, achieve higher monomer conversions, and do so with greater efficiency under visible light.

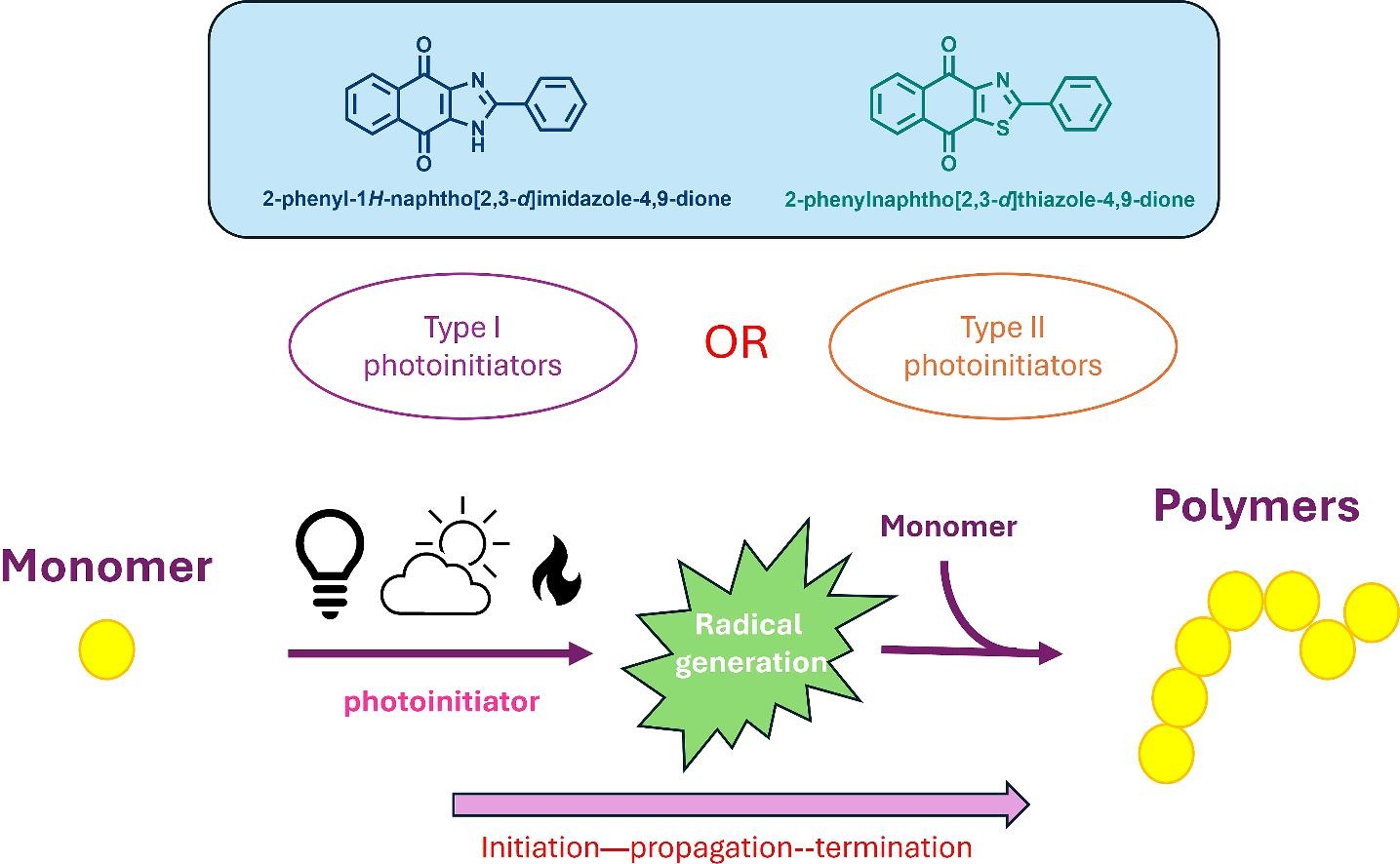

Naphthoquinone derivatives, particularly those based on imidazolyl and thiazole structures, have emerged as promising candidates in this search. These compounds have shown considerable potential as both Type I and Type II photoinitiators. Type I photoinitiators directly generate free radicals upon exposure to light, initiating the polymerization process. In contrast, Type II photoinitiators require a co-initiator to produce radicals. The versatility of naphthoquinone derivatives, capable of functioning effectively as either type, makes them highly attractive for a wide range of applications.
4. The Promise of Naphthoquinone Derivatives
Naphthoquinones are naturally occurring compounds, which adds an important layer of sustainability to their use in photopolymerization. The push towards greener chemical processes has made the use of biosourced materials increasingly important. Naphthoquinone derivatives align well with these goals, offering a means to significantly reduce the carbon footprint associated with photopolymerization.
The sustainability of naphthoquinones is further enhanced by their availability and cost-effectiveness. These compounds are relatively inexpensive to synthesize, making them accessible for large-scale industrial applications. The economic advantage of using naphthoquinones as precursors for photoinitiators is clear, as it enables the design of low-cost, highly effective light-absorbing structures. This is particularly important in industries where cost-efficiency is paramount, such as in large-scale manufacturing or consumer products.
In addition to their environmental and economic benefits, naphthoquinones possess a broad absorption spectrum, making them particularly suitable for use as sunlight photoinitiators. The ability to absorb light across a wide range of wavelengths increases the versatility of these photoinitiators, allowing them to be effective under varying light conditions, including natural sunlight. This is a significant advantage in outdoor applications, where reliance on artificial light sources may not be feasible or cost-effective.
5. Comparative Analysis of Photoinitiating Abilities
Recent studies have synthesized and evaluated various naphthoquinone-imidazolyl and naphthoquinone-thiazole derivatives to assess their photoinitiating capabilities. These investigations have revealed that even small structural modifications to the naphthoquinone core can lead to significant differences in performance, highlighting the importance of precise chemical design.
Naphthoquinone-imidazolyl derivatives, for example, have demonstrated exceptional efficiency in initiating polymerization under LED light sources. Some of these compounds have achieved polymerization rates and monomer conversions that are not only comparable to but in some cases exceed those of conventional photoinitiators. This high efficiency is partly due to the strong absorption of visible light by the imidazolyl-modified naphthoquinone structure, which ensures rapid generation of free radicals.
Similarly, naphthoquinone-thiazole derivatives have shown strong absorption in the visible light region, making them highly effective under both artificial and natural light sources. The thiazole moiety contributes to a red-shift in the absorption spectrum, which can be advantageous in applications requiring deeper penetration of light into the material, such as in thick coatings or bulk polymerizations.
The comparison of these structures indicates that the choice of substituents and the specific configuration of the naphthoquinone scaffold are critical in determining the efficiency and suitability of these photoinitiators for different applications. This opens up new possibilities for tailoring photoinitiators to meet specific industrial needs, whether it be for rapid curing processes, environmentally sensitive applications, or cost-effective production.
6. Applications and Future Directions
The potential applications of naphthoquinone-based photoinitiators are vast, spanning numerous industries. In the coatings and adhesives industry, their ability to initiate polymerization efficiently under visible light makes them ideal for developing fast-curing, durable products. In the realm of 3D printing, the use of naphthoquinone derivatives could lead to faster print speeds and improved resolution, as these photoinitiators enable more precise control over the polymerization process.
In the biomedical field, the low toxicity and biocompatibility of naphthoquinones, combined with their efficiency under mild conditions, make them suitable for use in the synthesis of hydrogels, tissue scaffolds, and drug delivery systems. The ability to initiate polymerization using sunlight also opens up possibilities for outdoor applications, such as in the construction of photopolymerized materials in remote or underdeveloped areas.
Looking forward, further research is needed to optimize the performance of naphthoquinone-based photoinitiators. This includes exploring new derivatives with enhanced properties, developing hybrid systems that combine naphthoquinones with other photoinitiators for synergistic effects, and scaling up production to meet industrial demands. Additionally, the environmental impact of using biosourced naphthoquinones in large-scale applications should be further evaluated to ensure that these processes remain sustainable and eco-friendly.
7. Conclusion
The development of naphthoquinone derivatives as photoinitiators represents a significant advancement in the field of visible light photopolymerization. These compounds not only offer the potential for enhanced polymerization performance but also align with the growing demand for sustainable and cost-effective solutions in chemical processes. As research continues to expand our understanding of these versatile molecules, it is likely that naphthoquinones will play a pivotal role in the next generation of photoinitiating systems.
The integration of energy-efficient light sources, such as LEDs, with advanced photoinitiators like naphthoquinone derivatives, heralds a new era in photopolymerization. This synergy promises to deliver processes that are not only more efficient and versatile but also more environmentally responsible, paving the way for broader adoption across a range of industries. With continued innovation and research, naphthoquinone-based photoinitiators are poised to become key players in the future of sustainable manufacturing and technology.
